ADC 3-12 AMBIENT DUST COLLECTOR

A.C.T. Dust Collectors offers a wide selection of dust collectors to not only help clear the air but also improve employee efficiency, increase employee retention, help ensure a safe working environment and reduce equipment maintenance costs.

The Ambient Dust Collector Series (ADC Series), is very similar to the cartridge dust collector systems. The ADC Series can be found on a variety of applications, including metalworking, plastics,
pharmaceutical, food processing and waste and recycling. The largest difference between the ADC Series and a standard cartridge dust collector is the ADC units are mounted to the ceiling to maximize floor space.

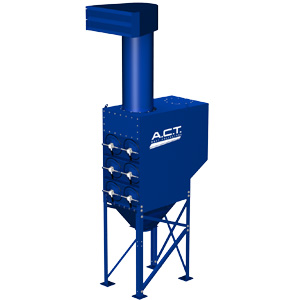

ADC 3-12 at 300x300 JPEG-1
ACT 3-12 at 300x300B
ADC 3-12 300x300

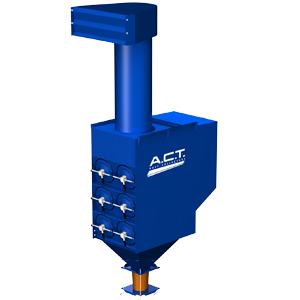

ADC 3-12 at 300x300 JPEG-1
ACT 3-12 at 300x300B
ADC 3-12 300x300

Applications:

Metal Working
Weld Smoke & Fumes
Laser Cutting
Food Processing
Recycling & Scrap
Grinding & Deburring

OVERVIEW

Advantages of the ADC 3-12

The ADC 3-12 is a compact dust collector specifically designed to be ceiling hung for applications including metalworking, weld smoke and fumes, blasting, plastics and many more. Typically, the ADC 3-12 would be found collecting dust and debris for a smaller area in a facility.

The downward airflow technology of this horizontal cartridge style dust collector, maximizes the airflow in the collector to assist with dust separation. The 3,048 square feet of media in the ADC 3-12 will help to ensure the dust collection system is operating at optimum performance.

ACT 3-12 Overview Right
ACT 3-12 Overview left

ADC 3-12 Maintenance

When this dust collection system was designed, maintenance was top of mind. Our cartridge dust collectors are easy to maintain because of the following standard features:

  • Automatic Venturi-Assisted Pulse Filter Cleaning System
  • ACTion-Lock Quick Release Filter Doors
  • Ease of Access to Filters

This ADC 3-12 dust collection system holds (12) cartridge filters and comes standard with our A.C.T. Nano-Elite Nanofiber Cartridges. Our cartridge dust collectors are built to have a low total cost of ownership.  Because our dust collectors take standard filters, the cost of replacement filters is much lower than systems that come with custom sized or shaped filters. It is important to consider filter replacement cost at the time of purchase.

ACT ADVANTAGE

Downward Airflow Graphic Gray

DOWNWARD FLOW TECHNOLOGY

Dirty air from the dust source enters the A.C.T. dust collector at the top of the main housing. There are inlets on the roof and optional inlets on the front for the most efficient connection. As air enters the dust collector, dust accumulates on the outside of the filters as air is drawn through the high-efficiency media. The air flowing down through the system greatly assists the fallout of dust into the hopper where it is discharged. When the pulse clean system activates and accumulated dust is released from the cartridges, the air flowing downward through the collector assists dust fallout again. This avoids dust from getting re-entrained and accumulating on the filter again. Systems with vertical filters — with air entering from the side or below — struggle to avoid dust getting picked back up in the airstream or “re-entrained.”

ACT Filter B

HIGH-EFFICIENCY NANO-ELITE CARTRIDGE FILTERS

Your A.C.T. dust collector comes standard with industry-best A.C.T Nano-Elite media. These feature a MERV 15 efficiency rating for effective collection of extremely fine dust, smoke and fume, removing 99.9% of particulate from the air. The cleaned air is then directed to the location of your choice: either returned to your facility or exhausted to the environment.

Quick Access Graphic Gray

QUICK-LOCK EASY ACCESS FILTER DOORS

The patented door design of A.C.T. dust collectors is simple, fast and secure. The cast aluminum handle locks the door shut against the dust collector. The heavy-duty cross-rod and brackets on the dust collector and cam are all stainless steel. Knobs, hinges, springs, threads and wasted time are eliminated. Lift the handle and door comes off. Set the cross-rod in the brackets, lower the handle and it’s locked securely. Click Here to watch the video.

filter-door@2x

EXTERIOR RAIL CARTRIDGE SUPPORTS FOR UNOBSTRUCTED PULSE

Inside the A.C.T. dust collector, the design continues to work. Two rails support the cartridge filters from the front to the back of the housing, eliminating the need for interior yoke support frame cantilevered from the collector tube sheet. The pulse clean system is unobstructed inside the filter for maximum effectiveness.

Pulse-Clean-1@2x

PREMIUM GOYEN DIAPHRAGM VALVES AND ELECTRIC SOLENOIDS

Get behind the system, and the working end of the A.C.T. dust collector is equipped for any requirement. Goyen diaphragm valves and electric solenoids are the industry standard. Coupled with Dwyer Instruments digital, solid-state pulse control, complete with on-board pressure switch, you can control on-line, on-demand and downtime cleaning. All this is enclosed in a weatherproof housing for reliable operation.

Venturi Assisted Graphic Gray

HEAVY CONSTRUCTION HOUSING WITH VENTURI ASSISTED CLEANING

The main housing of your A.C.T. dust collector is 7 and 10 gauge, all-welded steel. Systems with bolted panel construction can leak over time, so the housing of the A.C.T dust collector is fabricated with continuous, welded seams. Behind every row of two filters is a venturi for maximum performance on the pulse cleaning.

Weld Smoke application - INSTALLED@2x

FIT AND FINISH

With hundreds of A.C.T. dust collectors manufactured and installed, every serial number is a statement of quality. Lifting lugs are engineered to the correct lifting angle and formed doors for maximum rigidity, coupled with deep one-piece gaskets, maintain the seal. Angle iron support structure and base plates are pre-punched for easy installation. A fastener kit is included with Grade 5, zinc-plated fasteners. A premium blast, prime and paint process ensures the system will remain in excellent cosmetic condition for many years.

RESOURCES

Resources

At A.C.T. Dust Collectors, we do more than sell dust collectors.  We want to be your number one resource for all your dust collection needs.  From our helpful glossary of terms to our on-demand webinars and videos – you can find it all right here.  Manuals and brochures for all of our models of dust collectors are also accessible in downloadable formats.



Related White Papers:

Related Case Studies:

Related Blog Posts:



STANDARD FEATURES

Standard Features

With millions of CFM going through operating A.C.T. Dust Collectors every day worldwide, we have the solution to every application. Custom designed and built systems are common, and our engineering team can help find the dust collection system that's right for you.

Standard Features
Standard Features
Collector Design STD OPT
Mild Steel Construction
Venturi-Assisted Pulse Filter Cleaning System
ACTion-Lock Quick Release Filter Doors
Inlets (2) Available
A.C.T. Nano-Elite Nanofiber Cartridges
Dust Drawer/Tray Bottom Material Outlet
Stainless Steel Construction
High Temperature Construction
Explosion Protected Models
Direct Drive Fans
Chamber and Exhaust Silencers
Air Management Modules
Steep-Sided Hopper
Multi-Module Hopper for Single Outlet
Service Platform (OSHA compliant)
Sprinkler Coupler
Alternate Filter Media Options
After Filter Housing
HSPA/ASHRAE Filters
Damper Pack
Bag-In/Bag-Out Kit (Filter & Discharge)
High Temp (MERV 13) Filter
HEPA/ASHRAE Afterfilters
Paint System STD OPT
Primed and Painted Interior
Multi-Coat Paint Finish
Custom Color
Epoxy Coating
Hopper Discharge STD OPT
Drum Cover and Hose
Slide Gates
Rotary Valves and Transitions
Screw Conveyors
Electrical Controls, Gauges & Enclosures STD OPT
Control Box w/Digital Timer in NEMA 4 Enclosure
Control Panel with Magnetic Starter and Digital Timer Control
Control Panel with Variable Frequency Drive (VFD) and Digital Timer Control
Custom Panels
Solenoid Heater Kit
Warranty STD OPT
5-Year Warranty

DIMENSIONS

Dimensions

With millions of CFM going through operating A.C.T. Dust Collectors every day worldwide, we have the solution to every application. Custom designed and built systems are common, and our engineering team can help find the dust collection system that's right for you.

Dimensions
Dimensions
Model Height (A) Width (B) Depth (C) # of Filters Filter Area
ADC 2-8 127 40 87 8 2,032
ADC 3-12 146 40 87 12 3,048

REPLACEMENT FILTERS

OEM Replacement Filters

A.C.T. Nano-Elite high efficiency cartridge filters remove 99.9% of the particulate from the air stream. They carry a MERV 15 rating (best in the industry). The cleaned air is then directed to the location of your choice, either returned to the facility or exhausted to the environment.

Image 6@2xImage 7@2x





Request a Quote
