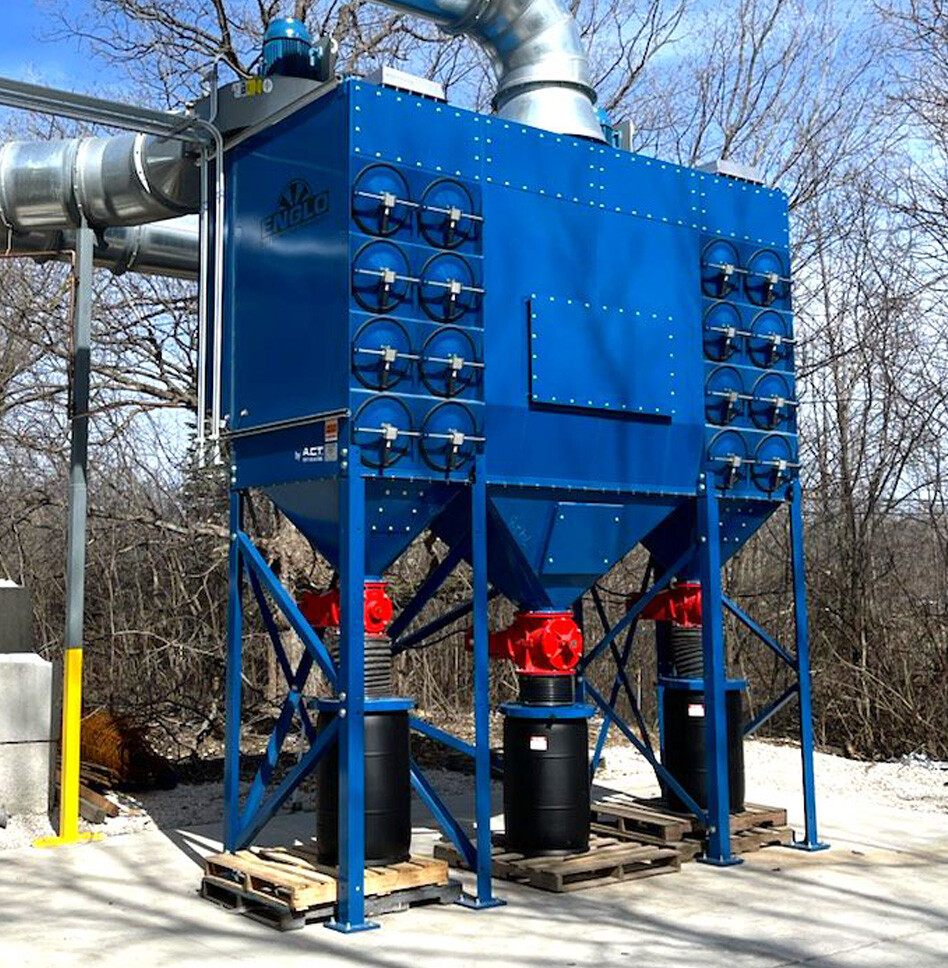

Air Management Modules Dust Collectors

Air Management Module units include an additional area for drop out of larger particulate.

With millions of CFM going through operating A.C.T. Dust Collectors every day worldwide, we have experience with applications in many industries! Custom designed and built systems are common, and our engineering team can help find the dust collection system that's right for you.

Dirty air from the dust source enters the A.C.T. dust collector at the top of the main housing. There are inlets on the roof and optional inlets on the front for the most efficient connection. As air enters the dust collector, dust accumulates on the outside of the filters as air is drawn through the high-efficiency media. The air flowing down through the system greatly assists the fallout of dust into the hopper where it is discharged. When the pulse clean system activates and accumulated dust is released from the cartridges, the air flowing downward through the collector assists dust fallout again. This avoids dust from getting re-entrained and accumulating on the filter again. Systems with vertical filters — with air entering from the side or below — struggle to avoid dust getting picked back up in the airstream or "re-entrained."

Request a Quote or Talk to a Specialist or

Order Filters

ADVANTAGES OF AMM Collectors

A.C.T. AMM Cartridge Collectors allow larger particulate or abrasive material to fall out or lose energy before reaching the filter media.

In heavy spark / torch cutting operations the AMM provides an additional layer of protection for the filters. The AMM provides a loss in velocity and increase cooling time for any molten metal / sparks to cool down and potential for drop out to prevent hot material from reaching filter media.

The system also provides an additional layer of protection for the filters for abrasive material and larger particulates to be removed from the air stream so it never reaches the filter media. The AMM can be used to promote material drop out at different velocities.

MAINTENANCE

When this dust collection system was designed, maintenance was top of mind. Our cartridge dust collectors are easy to maintain because of the following standard features:

Automatic Venturi-Assisted Pulse Filter Cleaning System
ACTion-Lock Quick Release Filter Doors
Ease of Access to Filters

This A.C.T. Dust Collector system comes standard with our A.C.T. Nano-Elite Nanofiber Cartridges. Our cartridge dust collectors are built to have a low total cost of ownership. Because our dust collectors take standard filters, the cost of replacement filters is much lower than systems that come with custom sized or shaped filters. It is important to consider filter replacement cost at the time of purchase.

EXTERIOR RAIL CARTRIDGE SUPPORTS FOR UNOBSTRUCTED PULSE

Inside the A.C.T. dust collector, the design continues to work. Two rails support the cartridge filters from the front to the back of the housing, eliminating the need for interior yoke support frame cantilevered from the collector tube sheet. The pulse clean system is unobstructed inside the filter for maximum effectiveness.

PREMIUM GOYEN DIAPHRAGM VALVES AND ELECTRIC SOLENOIDS

Get behind the system, and the working end of the A.C.T. dust collector is equipped for any requirement. Goyen diaphragm valves and electric solenoids are the industry standard. Coupled with Dwyer Instruments digital, solid-state pulse control, complete with on-board pressure switch, you can control on-line, on-demand and downtime cleaning. All this is enclosed in a weatherproof housing for reliable operation.

HEAVY CONSTRUCTION HOUSING WITH VENTURI ASSISTED CLEANING

The main housing of your A.C.T. dust collector is 7 and 10 gauge, all-welded steel. Systems with bolted panel construction can leak over time, so the housing of the A.C.T dust collector is fabricated with continuous, welded seams. Behind every row of two filters is a venturi for maximum performance on the pulse cleaning.

FIT AND FINISH

With hundreds of A.C.T. dust collectors manufactured and installed, every serial number is a statement of quality. Lifting lugs are engineered to the correct lifting angle and formed doors for maximum rigidity, coupled with deep one-piece gaskets, maintain the seal. Angle iron support structure and base plates are pre-punched for easy installation. A fastener kit is included with Grade 5, zinc-plated fasteners. A premium blast, prime and paint process ensures the system will remain in excellent cosmetic condition for many years.

Resources

At A.C.T. Dust Collectors, we do more than sell dust collectors. We want to be your number one resource for all your dust collection needs. From our helpful glossary of terms to our on-demand webinars and videos – you can find it all right here. Manuals and brochures for all of our models of dust collectors are also accessible in downloadable formats.

Related White Papers:

Related Case Studies:

Standard Features

With millions of CFM going through operating ACT Dust Collectors every day worldwide, we have the solution to every application. Custom designed and built systems are common, and our engineering team can help find the dust collection system that's right for you.

Standard Features

Collector Design	STD	OPT
Mild Steel Construction	✔
Venturi-Assisted Pulse Filter Cleaning System	✔
ACTion-Lock Quick Release Filter Doors	✔
Inlets (2) Available	✔
A.C.T. Nano-Elite Nanofiber Cartridges	✔
Dust Drawer/Tray Bottom Material Outlet		✔
Stainless Steel Construction		✔
High Temperature Construction		✔
Explosion Protected Models		✔
Direct Drive Fans		✔
Chamber and Exhaust Silencers		✔
Air Management Modules		✔
Steep-Sided Hopper		✔
Multi-Module Hopper for Single Outlet		✔
Service Platform (OSHA compliant)		✔
Sprinkler Coupler		✔
Alternate Filter Media Options		✔
After Filter Housing		✔
HSPA/ASHRAE Filters		✔
Damper Pack		✔
Bag-In/Bag-Out Kit (Filter & Discharge)		✔
High Temp (MERV 13) Filter		✔
HEPA/ASHRAE Afterfilters		✔

Paint System	STD	OPT
Primed and Painted Interior	✔
Multi-Coat Paint Finish	✔

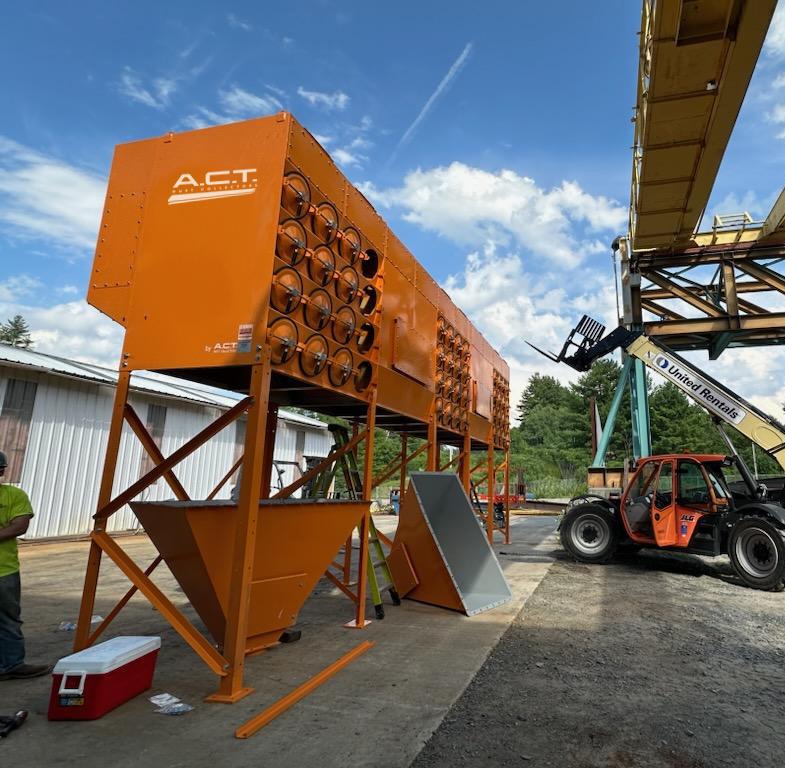

Custom Color		✔
Epoxy Coating		✔

Hopper Discharge	STD	OPT
Drum Cover and Hose	✔
Slide Gates		✔
Rotary Valves and Transitions		✔
Screw Conveyors		✔

Electrical Controls, Gauges & Enclosures	STD	OPT
Control Box w/Digital Timer in NEMA 4 Enclosure	✔
Control Panel with Magnetic Starter and Digital Timer Control		✔
Control Panel with Variable Frequency Drive (VFD) and Digital Timer Control		✔
Custom Panels		✔
Solenoid Heater Kit		✔

Warranty	STD	OPT
10-Year Warranty	✔

Dimensions

With millions of CFM going through operating ACT Dust Collectors every day worldwide, we have the solution to every application.

The quantity and sizing of the AMM modules may vary depending on the size unit needed for your application.

Custom designed and built systems are common, and our engineering team can help find the dust collection system that's right for you.
