Custom Entry Dust Collectors

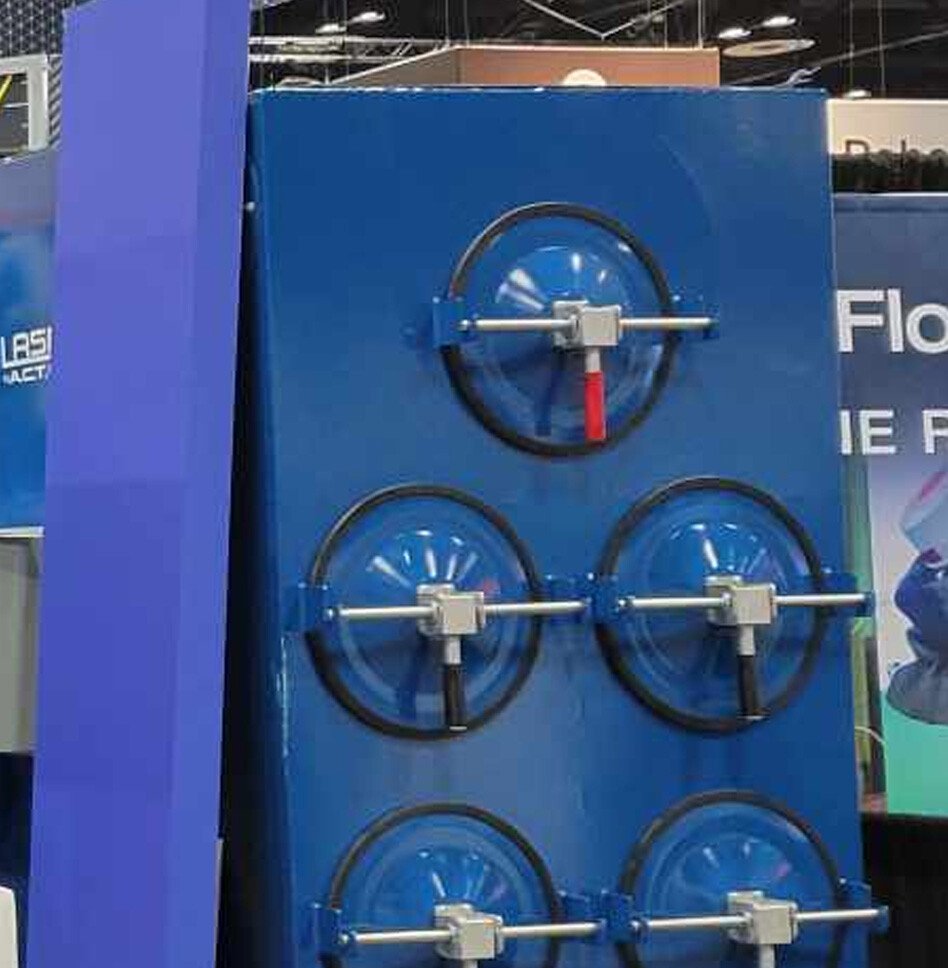

The patented door design of A.C.T. dust collectors is simple, fast and secure. Custom Entry Dust Collectors offer tool less spark trap entry and/or custom entry dust drawer entry.

The cast aluminum handle locks the door shut against the dust collector. The heavy-duty cross-rod and brackets on the dust collector and cam are all stainless steel. Knobs, hinges, springs, threads and wasted time are eliminated.

Set the cross-rod in the brackets, lower the handle and it's locked securely. Lift the handle and door comes off giving you quick access to the spark trap or dust drawers for easy maintenance.

Request a Quote or Talk to a Specialist or

Order Filters

ADVANTAGES OF Custom Entry Collectors

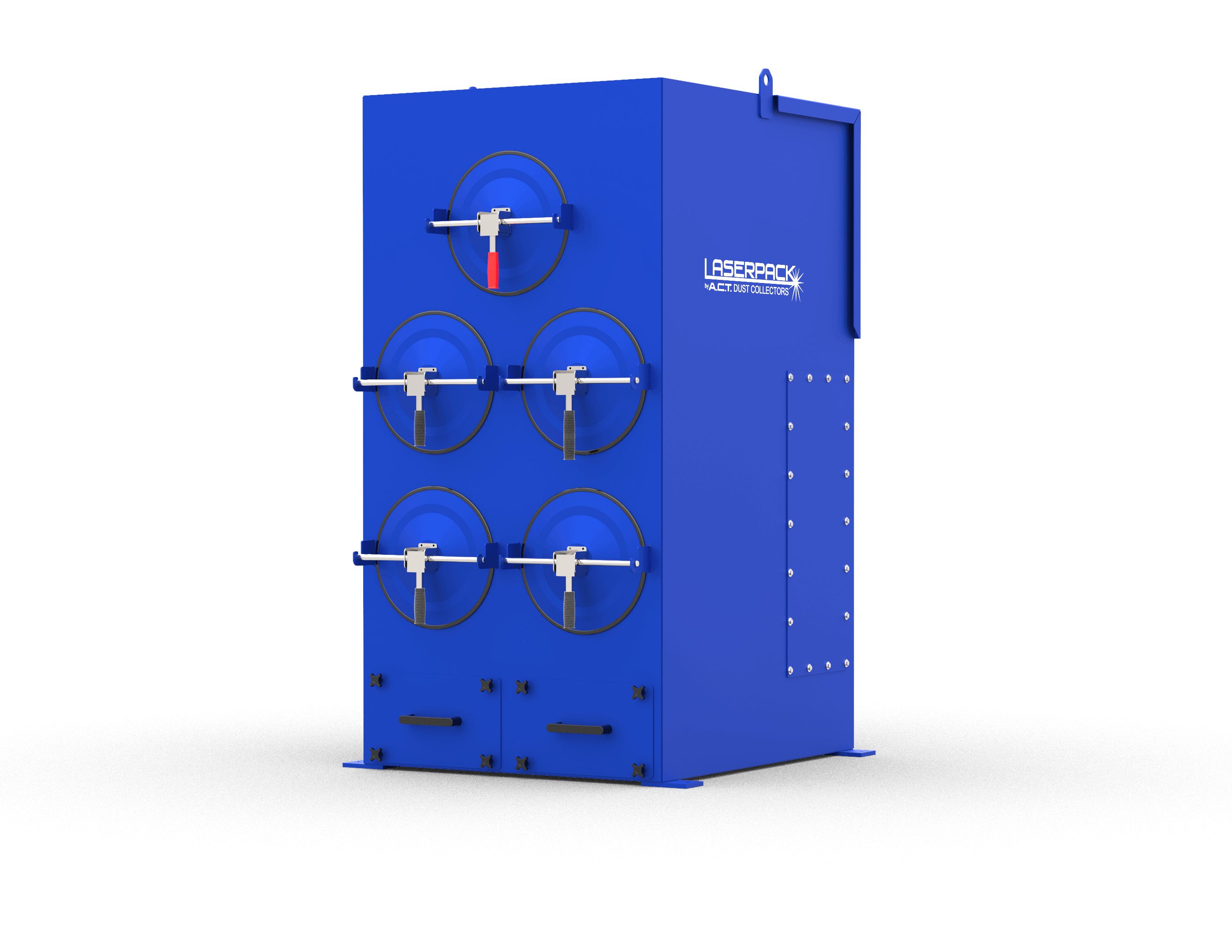

The A.C.T. LaserPack and WeldPack units can feature the custom tool less spark trap entry and/or dust drawer handle entry.

Both options make for quicker and simpler maintenance. Our standard entry for both sections are bolt on.

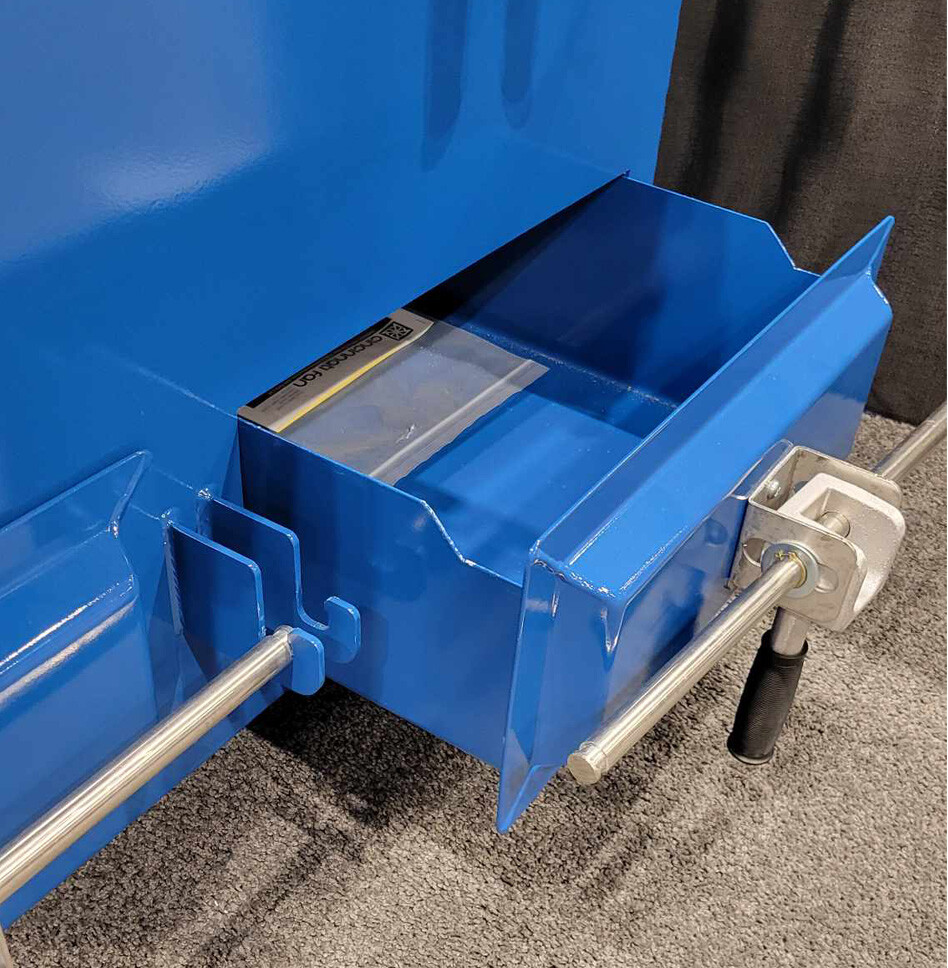

The A.C.T. Dust Drawer Collectors can also feature the custom dust drawer handle entry.

MAINTENANCE

When this dust collection system was designed, maintenance was top of mind. Our cartridge dust collectors are easy to maintain because of the following standard features:

Automatic Venturi-Assisted Pulse Filter Cleaning System
ACTion-Lock Quick Release Filter Doors
Ease of Access to Filters

This A.C.T. Dust Collector system comes standard with our A.C.T. Nano-Elite Nanofiber Cartridges. Our cartridge dust collectors are built to have a low total cost of ownership. Because our dust collectors take standard filters, the cost of replacement filters is much lower than systems that come with custom sized or shaped filters. It is important to consider filter replacement cost at the time of purchase.

EXTERIOR RAIL CARTRIDGE SUPPORTS FOR UNOBSTRUCTED PULSE

Inside the A.C.T. dust collector, the design continues to work. Two rails support the custom entry doors from the front to the back of the housing, eliminating the need for interior yoke support frame cantilevered from the collector tube sheet.

FIT AND FINISH

Thoughtfully constructed of stainless steel cam rod and bracket. As well as premium blast, prime and paint process ensures the drawers will remain in excellent cosmetic condition for many years.

Resources

At A.C.T. Dust Collectors, we do more than sell dust collectors. We want to be your number one resource for all your dust collection needs. From our helpful glossary of terms to our on-demand webinars and videos – you can find it all right here. Manuals and brochures for all of our models of dust collectors are also accessible in downloadable formats.

Related White Papers:

Related Case Studies:

Standard Features

The custom entry doors will seamless flow within the overall design of our A.C.T. Dust Collector while making maintenance easier.

Standard Features

Custom Entry Door Design	STD	OPT
ACTion-Lock Quick Release	✔
Mild Steel Constructed Door	✔
Stainless Steel Bracket	✔
Stainless Steel Cam Rod	✔
Cast Aluminum Handle	✔
Outdoor Rated Rubber Handle Grip	✔

Paint System	STD	OPT
Primed and Painted Interior Filter Door	✔
Multi-Coat Paint Finish Filter Door	✔
Custom Color Filter Door		✔

Warranty	STD	OPT
10-Year Warranty	✔

Dimensions

The A.C.T. Dust Drawer models feature optional custom entry drawers. The LaserPack and WeldPack models can feature the custom entry dust drawers as well as the custom entry spark trap door.

Dimensions

Model	Height	Width	Depth	# of Filters	Filter Area
ACT 2-2DD	70	26	56	2	508
ACT 3-3DD	95	26	56	3	762

Model	Height	Width	Depth	# of Filters	Filter Area	Weight
LaserPack 2	85	30	58	2	508	1000lbs
LaserPack 4	85	42	58	4	1,016	1700lbs
LaserPack 6	113	42	58	6	1,524	2300lbs
LaserPack 8	89	42	84	8	2032	3900lbs

Model	Height	Width	Depth	# of Filters	Filter Area	Weight
WeldPack 2	85	30	58	2	508	1000lbs
WeldPack 4	85	42	58	4	1,016	1700lbs
WeldPack 6	113	42	58	6	1,524	2300lbs
WeldPack 8	89	42	84	8	2032	3900lbs
