A.C.T. Dust Collectors ARB Baghouses are designed to meet the unique requirements of each application. They feature a continuous on line cleaning system so you have the same CFM at the end of the day that you started with.
The ARB Baghouse Collectors are best suited for heavy loading applications such as woodworking, feed, grain, food processes and recycling. This series features cyclonic baghouse filters. A.C.T. Dust Collectors offer round style baghouse collectors to meet your dust collection requirements.
The ACT ARB 153-8-12 Round Baghouse is designed to meet the unique requirements of many applications including feed & grain, food processing, woodworking and recycling.
ARB series units do not require compressed air as the ARB comes standard with medium pressure cleaning system. The built-in cyclone promotes material drop out and extends filter life. Overall design is compact to minimize footprint.
Another advantage of the ARB series baghouse units is their single discharge point with one airlock and one container such as a dumpster, compactor, trailer, semitruck, or a supersack.
When this dust collection system was designed, maintenance was top of mind. Our baghouse dust collectors are easy to maintain because of the following standard features:
Medium pressure cleaning system
OSHA Compliant Service Platform and Cage Access Ladder with
Fall Protection System
This ACT ARB 153-8-12 dust collection system holds (153) filter bags with hinged access door to walk in plenum for filter inspection and service. And, it features the A.C.T. standard no-tools top bag and cage removal at time of service.
The A.C.T. Dust Collectors ARB Baghouse Series features a continuous, self-cleaning design to operate without the need for additional compressed air.
The main housing of the A.C.T. Dust Collector ARB Series Baghouse Collectors is 10 gauge upper section, 3/16" inlet and 10 gauge sidewall and cone section, hot-rolled carbon steel.
The most popular feature of the ARB Baghouse series is our Tool-Free Bag Replacement. Top load filter change outs made easy with a walk-in clean air plenum.
The ARB Baghouse operation is simple, proven, and efficient. Dust-laden air is drawn from the source through a duct system and into the reversible, bolt-on 90 degree involute inlet. Through air expansion and an internal deflection plate, the airstream velocity is reduced so large particles drop into the hopper below. The remaining dust particles are filtered through bag filters. This ensures that only clean air passes into the clean air plenum, through the fan, and is either exhausted to the atmosphere or returned to the building.
With hundreds of A.C.T. dust collectors manufactured and installed, every serial number is a statement of quality. Lifting lugs are engineered to the correct lifting angle and formed doors for maximum rigidity, coupled with deep one-piece gaskets, maintain the seal. Angle iron support structure and base plates are pre-punched for easy installation. A fastener kit is included with Grade 5, zinc-plated fasteners. A premium prime and paint process ensures the system will remain in excellent cosmetic condition for many years.
At A.C.T. Dust Collectors, we do more than sell baghouse units. We want to be your number one resource for all your dust collection needs. From our helpful glossary of terms to our on-demand webinars and videos – you can find it all right here. Manuals and brochures for all of our models of dust collectors are also accessible in downloadable formats.
With millions of CFM going through operating A.C.T. Dust Collectors every day worldwide, we have the solution to every application. Custom designed and built systems are common, and our engineering team can help find the dust collection system that's right for you.
ARB SERIES Baghouse | STD | OPT |
Medium Pressure Continuous Filter Cleaning | ✔ | |
Tool-Free Bag Replacement | ✔ | |
Clean Side, Top Access Snap Band Filter Bags with Grounding Wires | ✔ | |
Top Load Filter Change Out | ✔ | |
Hinged Filter Access Doors | ✔ | |
Explosion Venting | ✔ | |
OSHA Compliant Service Platform and Cage Access Ladder with Fall Protection System | ✔ | |
Vortex Breakers | ✔ | |
Medium Pressure Blower Package | ✔ | |
Replaceable Bolt-On Involute Inlet | ✔ | |
Premium Prime & Paint Exterior, High Gloss Enamel | ✔ | |
Rotary Airlocks and Transition | ✔ | |
Filter Discharge Transition to Rotary Airlock | ✔ | |
Screw Conveyors, Drag Conveyors or Pneumatic Conveyors | ✔ | |
Extended/Modified Steel Support Structure | ✔ | |
Custom Filter Media Options | ✔ | |
Motor/Blower for Specific Performance | ✔ | |
Exhaust Silencer | ✔ | |
Steeper cone options | ✔ | |
Ductwork and Inlet/Outlet Manifolds | ✔ | |
After filter Plenums for HEPA or ASHRAE | ✔ | |
NFPA 69 Compliant Backdraft Dampers / Explosion Isolation Valves | ✔ | |
Motor Control Panels (Soft Start, VFD’s, etc.) | ✔ | |
Spark Detection System | ✔ | |
High Speed Abort Gates | ✔ | |
High Temperature Operation Components | ✔ | |
Custom Color Exterior, Paint Finishes & Coatings | ✔ |
With millions of CFM going through operating A.C.T. Dust Collectors every day worldwide, we have the solution to every application. Custom designed and built systems are common, and our engineering team can help find the dust collection system that's right for you.
Model | Nominal Airflow Range (CFM) | Filter Media (ft2) | # of Bags | Bag Length (ft) | Bag Diameter (in) | Weight (lbs) |
Height
|
Footprint
|
|
ARB 153-8-12 | 20,000 | 2,223 | 153 | 12' | 5" | 13,000 lbs | 45' 7" | 85" x 85" | |
ARB 361-12-12 | 45,000 | 5,245 | 361 | 12' | 5" | 23,700 lbs | 51' 7" | 112.5" x 112.5" | |

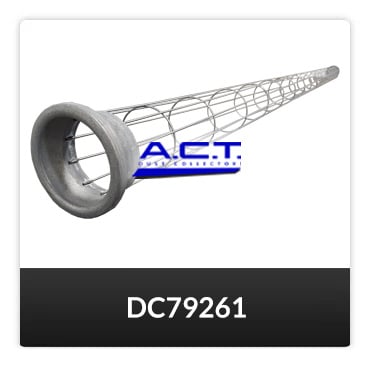

A.C.T. Dust Collectors prides itself in offering the highest quality O.E.M filters for their baghouse collectors. Our industrial bag filters are very durable and pliant, and offer top-notch release properties for dust and other particles. Typically, industrial bag filters have longer service lives between replacements.
