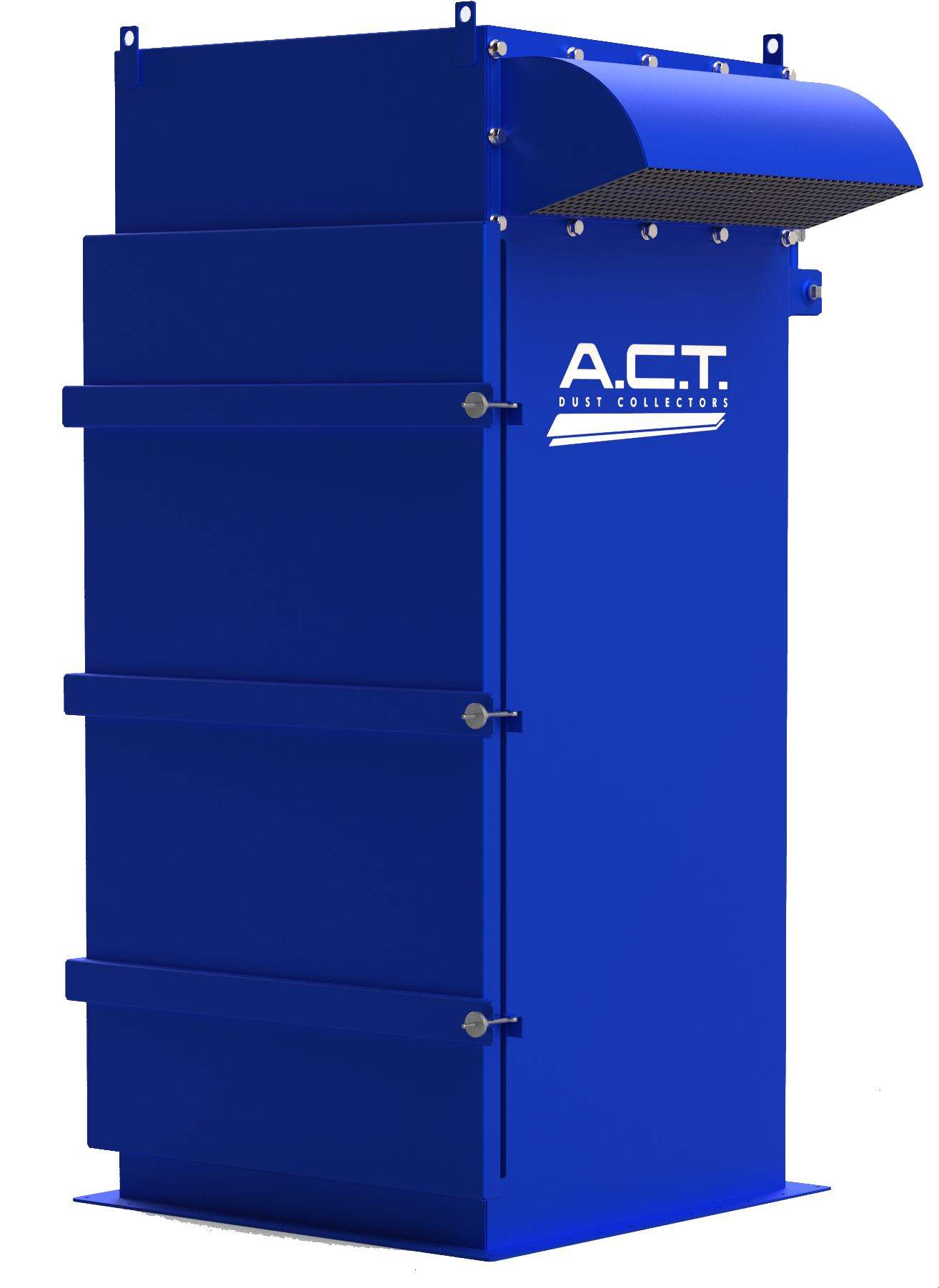

    ACT 5x5BV DUST COLLECTOR

      With millions of CFM going through operating A.C.T. Dust Collectors every day worldwide, we have experience with applications in many industries!  Custom designed and built systems are common, and our engineering team can help find the dust collection system that's right for you.

      Bin vents are designed to vent displaced air and effectively control dust particles in bins, silos, transfer points, or any other device or process requiring dust containment.  These units are perfect for the feed & grain industry.

      An ACT Bin Vent unit is compact, easy to install, eliminates ductwork and reduces installation expense.
      ACT 5x5BV CGI PNG-1
      5X5 D
      5x5 B
      ACT 5x5BV CGI PNG
      5X5 D
      5x5 B

      Applications:

      Feed & Grain

      OVERVIEW

      Advantages of the ACT 5x5BV

      The ACT 5x5BV is a compact dust collector with a small footprint for applications including feed & grain and food processing.

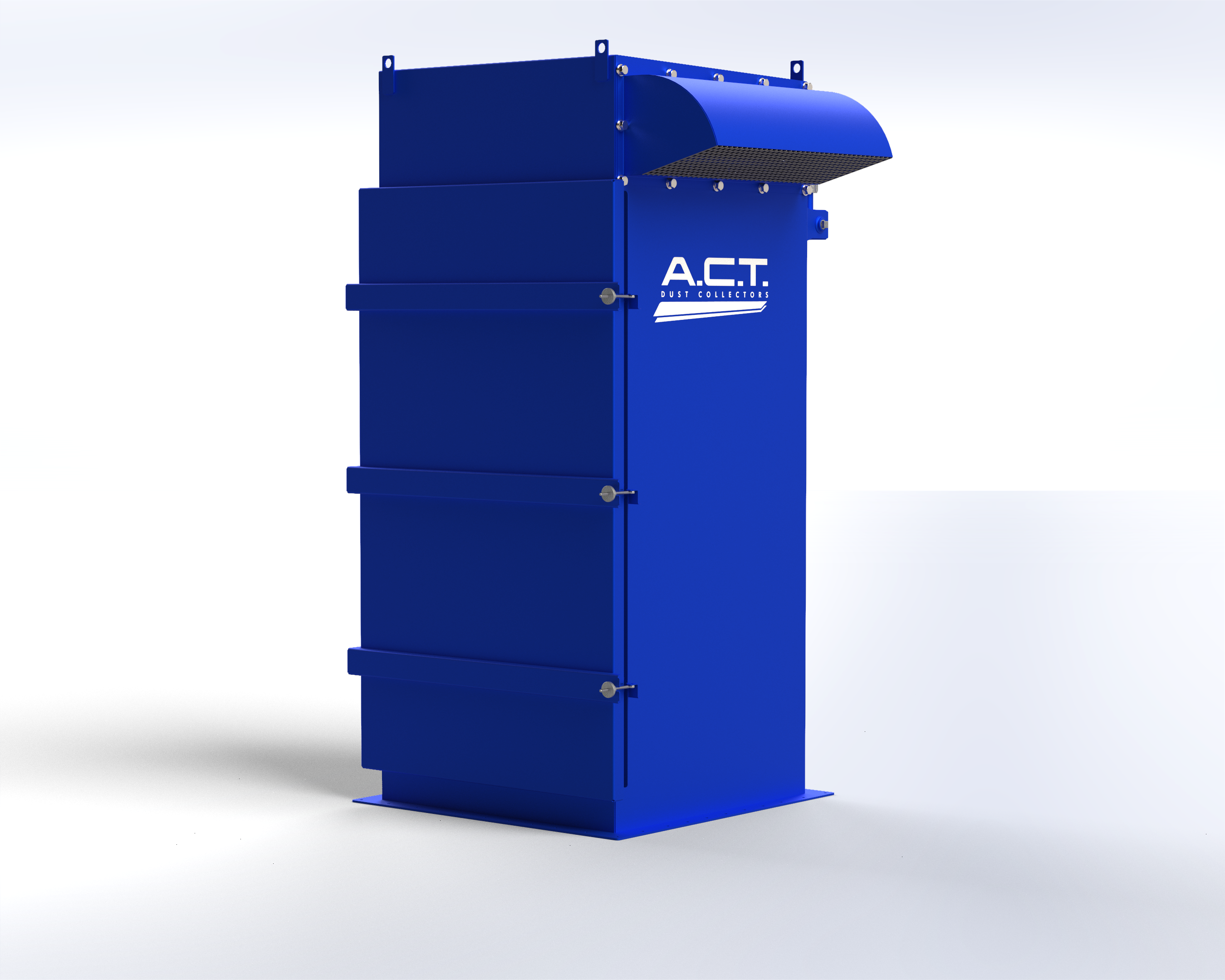

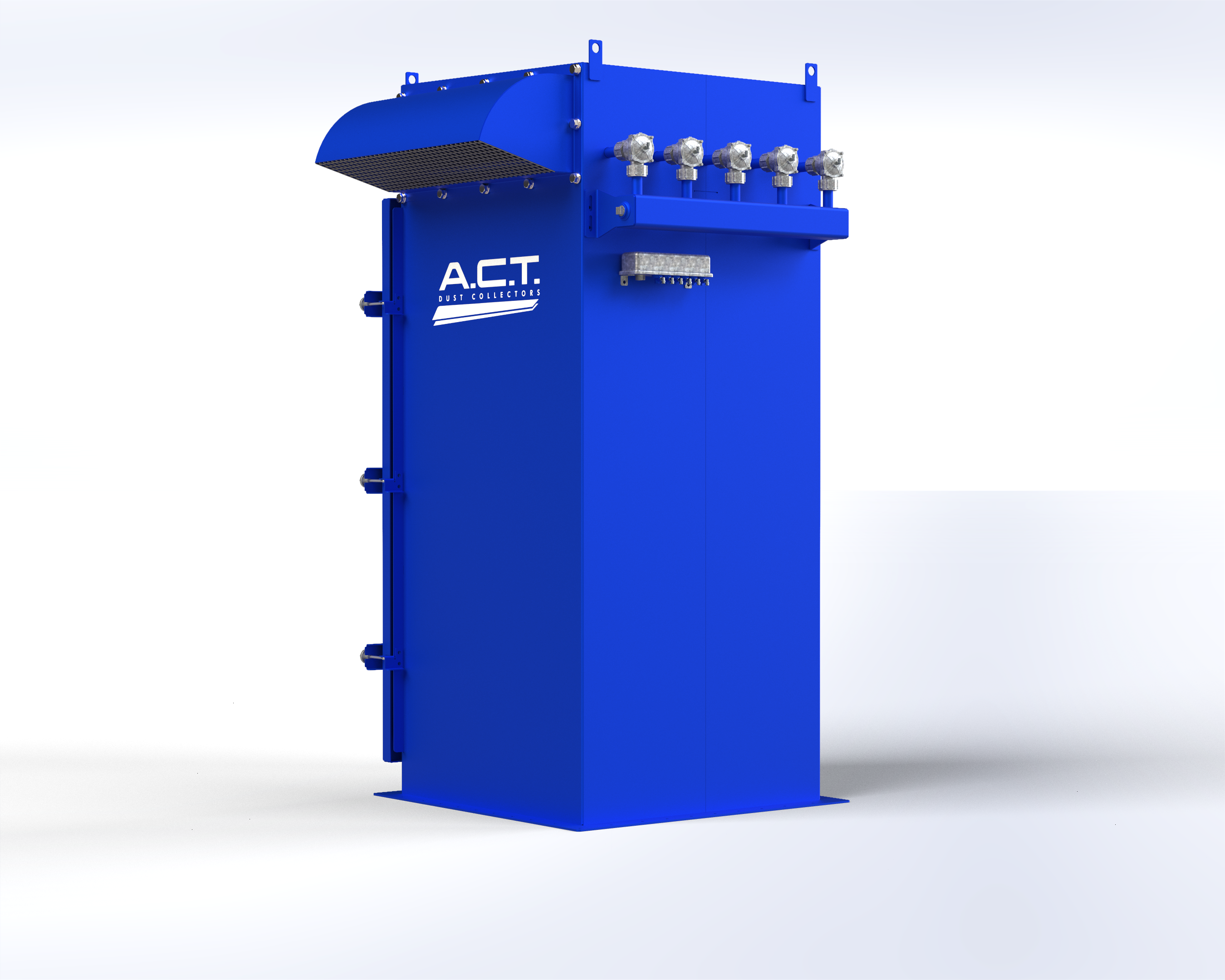

      It features a sloped roof, a large front access door and  easy-to-change bottom-load filters, eliminating the hassle of ladders for regular maintenance.  The 257.5 square feet of media in the ACT 5x5BV will help to ensure the dust collection system is operating at optimum performance.

      5X5 D
      5x5 B

      ACT 5x5BV Maintenance

      When this dust collection system was designed, maintenance was top of mind. Our dust collectors are easy to maintain because of the following standard features:

      • Bottom-Load Bags and Cages
      • Large, Front Door Filter Access

      This ACT 5x5BV dust collection system holds (25) 6' polyester bag filters  Our dust collectors are built to have a low total cost of ownership.  Because our dust collectors take standard filters, the cost of replacement filters is much lower than systems that come with custom sized or shaped filters. It is important to consider filter replacement cost at the time of purchase.

      ACT ADVANTAGE

      Pulse-Clean-1@2x

      PREMIUM GOYEN DIAPHRAGM VALVES AND ELECTRIC SOLENOIDS

      Get behind the system, and the working end of the A.C.T. dust collector is equipped for any requirement. Goyen diaphragm valves and electric solenoids are the industry standard. Coupled with Dwyer Instruments digital, solid-state pulse control, complete with on-board pressure switch, you can control on-line, on-demand and downtime cleaning. All this is enclosed in a weatherproof housing for reliable operation.

      Weld Smoke application - INSTALLED@2x

      FIT AND FINISH

      With hundreds of A.C.T. dust collectors manufactured and installed, every serial number is a statement of quality. Lifting lugs are engineered to the correct lifting angle and formed doors for maximum rigidity, coupled with deep one-piece gaskets, maintain the seal. Angle iron support structure and base plates are pre-punched for easy installation. A fastener kit is included with Grade 5, zinc-plated fasteners. A premium blast, prime and paint process ensures the system will remain in excellent cosmetic condition for many years.

      RESOURCES

      Resources

      At A.C.T. Dust Collectors, we do more than sell dust collectors.  We want to be your number one resource for all your dust collection needs.  From our helpful glossary of terms to our on-demand webinars and videos – you can find it all right here.  Manuals and brochures for all of our models of dust collectors are also accessible in downloadable formats.



      Related White Papers:

      Related Case Studies:

      Related Blog Posts:



      STANDARD FEATURES

      Standard Features

      With millions of CFM going through operating A.C.T. Dust Collectors every day worldwide, we have the solution to every application. Custom designed and built systems are common, and our engineering team can help find the dust collection system that's right for you.

      Standard Features
      Standard Features
      Collector Design STD OPT
      Mild Steel Construction ✔
      Venturi-Assisted Pulse Filter Cleaning System ✔
      Large, Front Filter Access Door ✔
      A.C.T. Polyester Bag Filters ✔
      Stainless Steel Construction   ✔
      High Temperature Construction   ✔
      Explosion Protected Models   ✔
      Direct Drive Fans   ✔
      Chamber and Exhaust Silencers   ✔
      Sprinkler Coupler   ✔
      Alternate Filter Media Options   ✔
      After Filter Housing   ✔
      HSPA/ASHRAE Filters   ✔
      Damper Pack   ✔
      HEPA/ASHRAE Afterfilters   ✔
      Paint System STD OPT
      Primed and Painted Interior ✔
      Multi-Coat Paint Finish ✔
      Custom Color   ✔
      Epoxy Coating   ✔
      Electrical Controls, Gauges & Enclosures STD OPT
      Control Panel with Magnetic Starter and Digital Timer Control   ✔
      Control Panel with Variable Frequency Drive (VFD) and Digital Timer Control   ✔
      Custom Panels   ✔
      Solenoid Heater Kit   ✔
      Warranty STD OPT
      10-Year Warranty ✔

      DIMENSIONS

      Dimensions

      With millions of CFM going through operating A.C.T. Dust Collectors every day worldwide, we have the solution to every application. Custom designed and built systems are common, and our engineering team can help find the dust collection system that's right for you.

      Dimensions
      Dimensions
      Model Height Width Depth # of Filters Filter Area
      ACT 2-2BV 83 42 56 2 508
      ACT 2-4BV 62 42 56 4 1,016
      ACT 3-6BV 83 42 56 6 1,524
      ACT 2-8BV 59 40 88 8 2,032
      ACT 5x5BV 96.25 57 52 25 257.5

      REPLACEMENT FILTERS

      OEM Replacement Filters

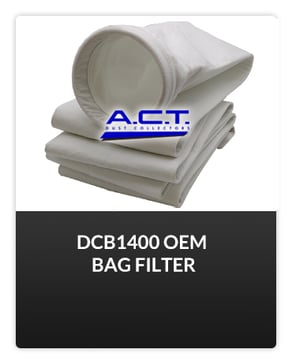

      A.C.T. bag filters for the ACT 5x5BV Unit.

      DCB1400 Filter Button
