Industry demands fast, efficient and effective dust collection solutions. A.C.T. Dust Collectors introduces the ACTion Booth Series with wall panels, one of the most versatile industrial dust collection systems for industrial air filtration.

The unique industrial dust collection system design combines heavy-duty construction with multifunction design in a plug-and-play package. Simply position the ACTion Booth Power Module at the back of your work area, assemble the walls and roof, and set up your work area. Our booth walls have no internal flanges for a smooth finish. This smooth finish promotes good airflow through the booth and minimizes the chance for dust to settle out of the airstream. Our optional return air system provides an extra push where heavier particulate is being generated. Dirty air is drawn into the oversized inlet, which has vertical louvers to evenly distribute incoming dirty air while providing velocity reduction for heavy material separation for longer filter life.

Request a Quote or Talk to a Specialist or

Order Filters

Advantages of the ACTION BOOTH

The ACTion Booth is a compact dust collector with a small footprint for applications including sanding, blasting and deburring, powder coating and many more. Typically, the ACTion Booth would be found collecting dust and debris for a smaller area in a facility.

ACTion Booth Power Module features an integral blower motor that is surrounded with noise attenuation material for quiet operation. Clean air is returned out the top of the industrial dust collector and recirculated back to your factory floor.

ACTion Booth Maintenance

When this dust collection system was designed, maintenance was top of mind. Our cartridge dust collectors are easy to maintain because of the following standard features:

Automatic Venturi-Assisted Pulse Filter Cleaning System
Ease of Access to Filters

High-efficiency vertical cartridge filters capture the dust, while an automatic pulse clean system maintains the system during operation. Accumulated dust is contained in the two dust drawers at the base, easily removable for disposal as needed.

PREMIUM GOYEN DIAPHRAGM VALVES AND ELECTRIC SOLENOIDS

Get behind the system, and the working end of the A.C.T. dust collector is equipped for any requirement. Goyen diaphragm valves and electric solenoids are the industry standard. Coupled with Dwyer Instruments digital, solid-state pulse control, complete with on-board pressure switch, you can control on-line, on-demand and downtime cleaning. All this is enclosed in a weatherproof housing for reliable operation.

HIGH-EFFICIENCY NANO-ELITE CARTRIDGE FILTERS

Your A.C.T. dust collector comes standard with industry-best A.C.T Nano-Elite media. These feature a MERV 15 efficiency rating for effective collection of extremely fine dust, smoke and fume, removing 99.9% of particulate from the air. The cleaned air is then directed to the location of your choice: either returned to your facility or exhausted to the environment.

FIT AND FINISH

With hundreds of A.C.T. dust collectors manufactured and installed, every serial number is a statement of quality. Lifting lugs are engineered to the correct lifting angle and formed doors for maximum rigidity, coupled with deep one-piece gaskets, maintain the seal. Angle iron support structure and base plates are pre-punched for easy installation. A fastener kit is included with Grade 5, zinc-plated fasteners. A premium blast, prime and paint process ensures the system will remain in excellent cosmetic condition for many years.

Resources

At A.C.T. Dust Collectors, we do more than sell dust collectors. We want to be your number one resource for all your dust collection needs. From our helpful glossary of terms to our on-demand webinars and videos – you can find it all right here. Manuals and brochures for all of our models of dust collectors are also accessible in downloadable formats.

Related White Papers:

Cost Analysis Guide: The True Cost of Running a Dust Collector

Related Case Studies:

ACTion Booth Contains Dust in Industrial Environment for Manufacturer

Standard Features

With millions of CFM going through operating ACT Dust Collectors every day worldwide, we have the solution to every application. Custom designed and built systems are common, and our engineering team can help find the dust collection system that's right for you.

Standard Features

Collector Design	STD	OPT
Mild Steel Construction	✔
Venturi-Assisted Pulse Filter Cleaning System	✔
A.C.T. Nano-Elite Nanofiber Cartridges	✔
Dust Drawer/Tray Bottom Material Outlet	✔
Control Box w/ Solid State Timer Board in NEMA 12 Enclosure and Pressure Gauge	✔
Quick Lock, Easy-Access Filter Door	✔
Unique ACTion Inlet With Spark Arresting Technology	✔

Paint System	STD	OPT
Primed and Painted Interior	✔
Multi-Coat Paint Finish	✔
Custom Color		✔

Warranty	STD	OPT
10-Year Warranty	✔

Dimensions

Model	Height (A)	Width (B)	Depth (C)	# of Filters	Filter Area
ACTion Booth	96	43	47	4	1400

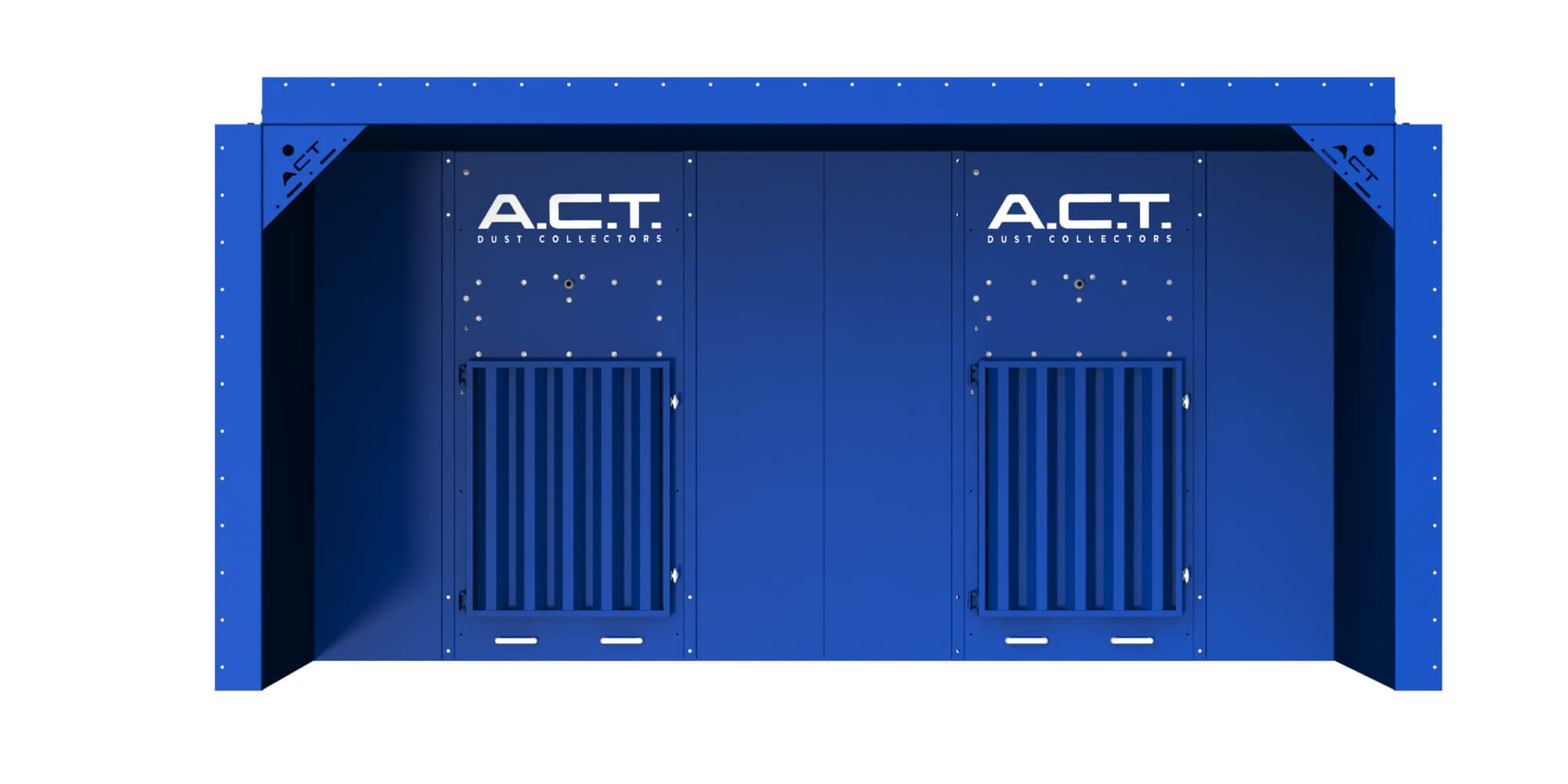

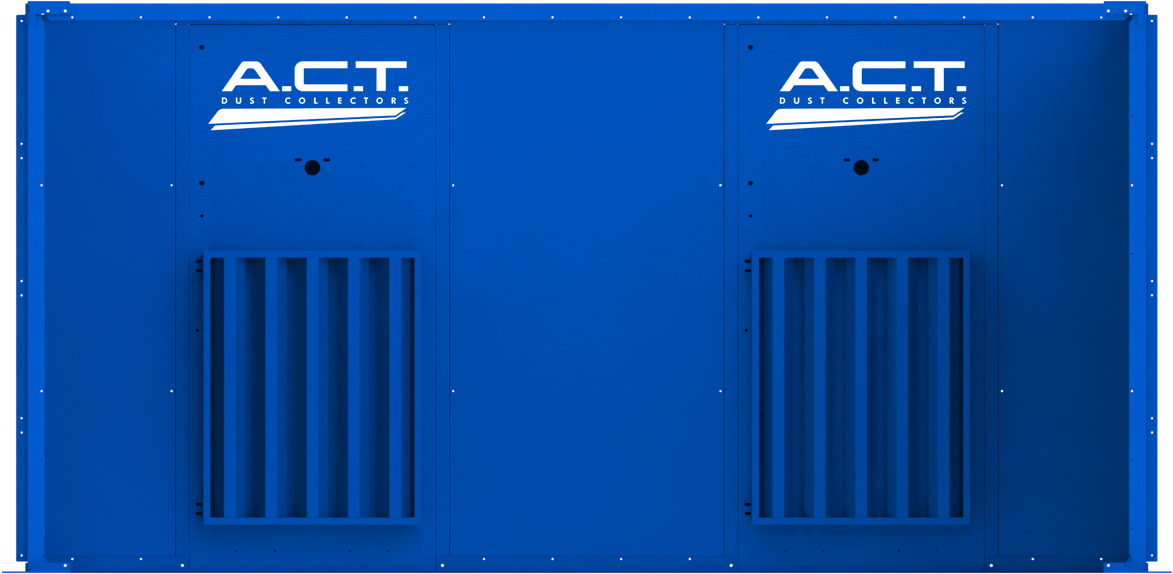

ACTION BOOTH DOUBLE (WIDTH = 14',16',18', 20')

Applications:

OVERVIEW

Advantages of the ACTION BOOTH

ACTion Booth Maintenance

ACT ADVANTAGE

PREMIUM GOYEN DIAPHRAGM VALVES AND ELECTRIC SOLENOIDS

HIGH-EFFICIENCY NANO-ELITE CARTRIDGE FILTERS

FIT AND FINISH

RESOURCES

Resources

Related White Papers:

Related Case Studies:

Related Blog Posts:

STANDARD FEATURES

Standard Features

DIMENSIONS

Dimensions

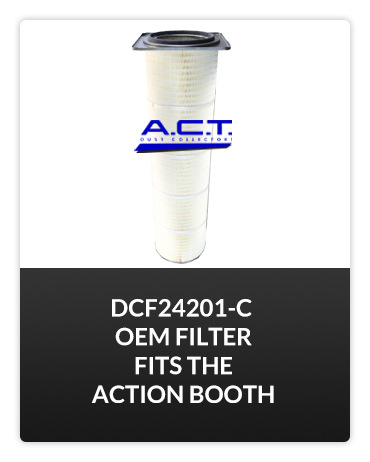

REPLACEMENT FILTERS
