ACTION BOOTH SINGLE (Width = 8',10',12')

Industry demands fast, efficient and effective dust collection solutions. A.C.T. Dust Collectors introduces the ACTion Booth Series with wall panels, one of the most versatile industrial dust collection systems for industrial air filtration.

The unique industrial dust collection system design combines heavy-duty construction with multifunction design in a plug-and-play package. Simply position the ACTion Booth Power Module at the back of your work area, assemble the walls and roof, and set up your work area. Our booth walls have no internal flanges for a smooth finish. This smooth finish promotes good airflow through the booth and minimizes the chance for dust to settle out of the airstream. Our optional return air system provides an extra push where heavier particulate is being generated. Dirty air is drawn into the oversized inlet, which has vertical louvers to evenly distribute incoming dirty air while providing velocity reduction for heavy material separation for longer filter life.

Applications:

Grinding & Deburring
Blasting
Sawing
Sanding & Finishing
Powder Coating
Recycling & Scrap

OVERVIEW

Advantages of the ACTION BOOTH

The ACTion Booth is a compact dust collector with a small footprint for applications including sanding, blasting and deburring, powder coating and many more. Typically, the ACTion Booth would be found collecting dust and debris for a smaller area in a facility.

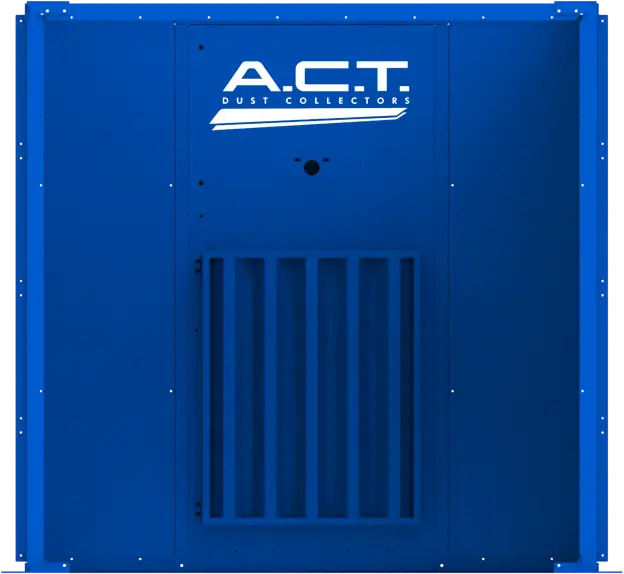

ACTion Booth Power Module features an integral blower motor that is surrounded with noise attenuation material for quiet operation. Clean air is returned out the top of the industrial dust collector and recirculated back to your factory floor.

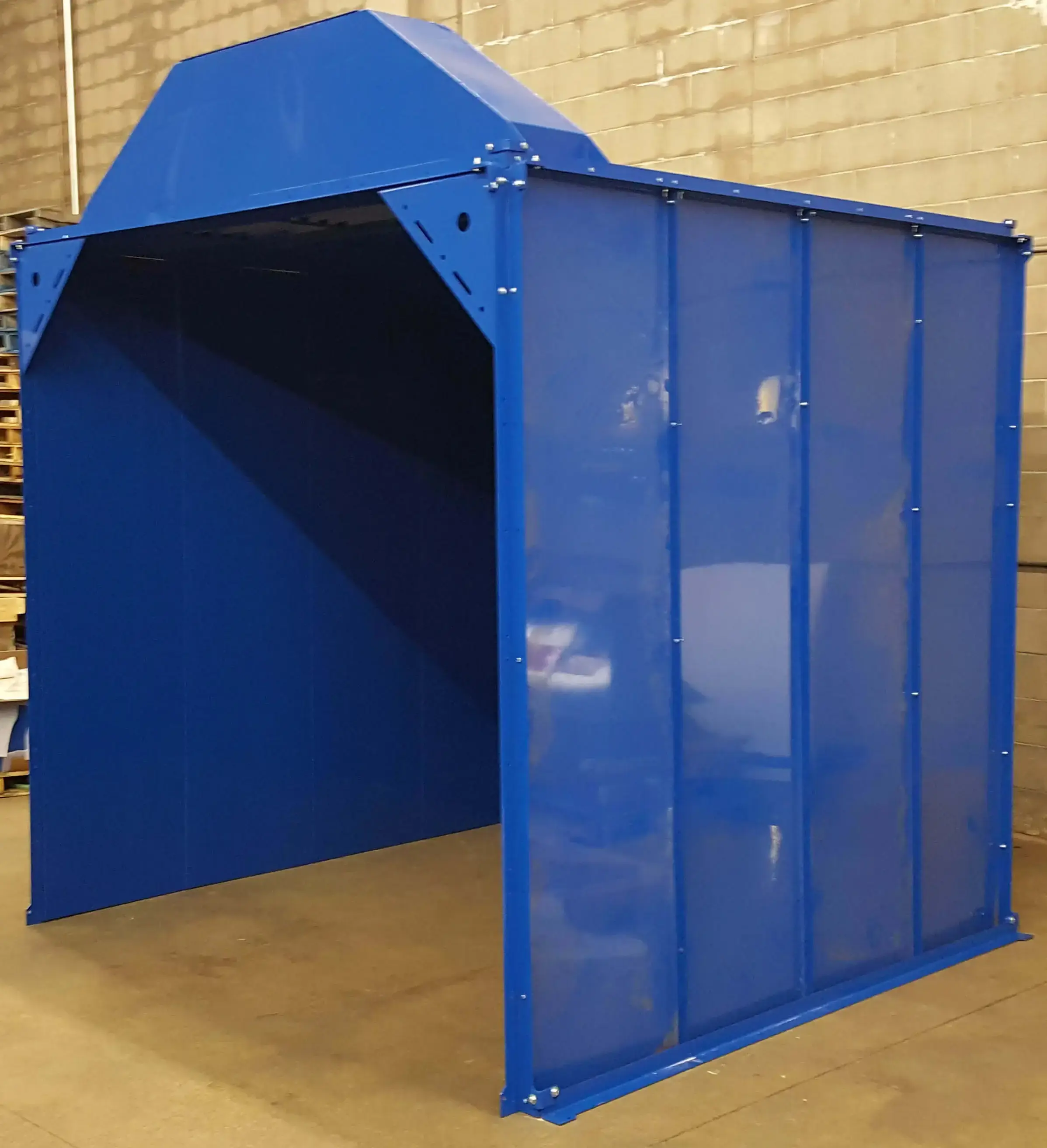

ACTion Booth Series Single Booth

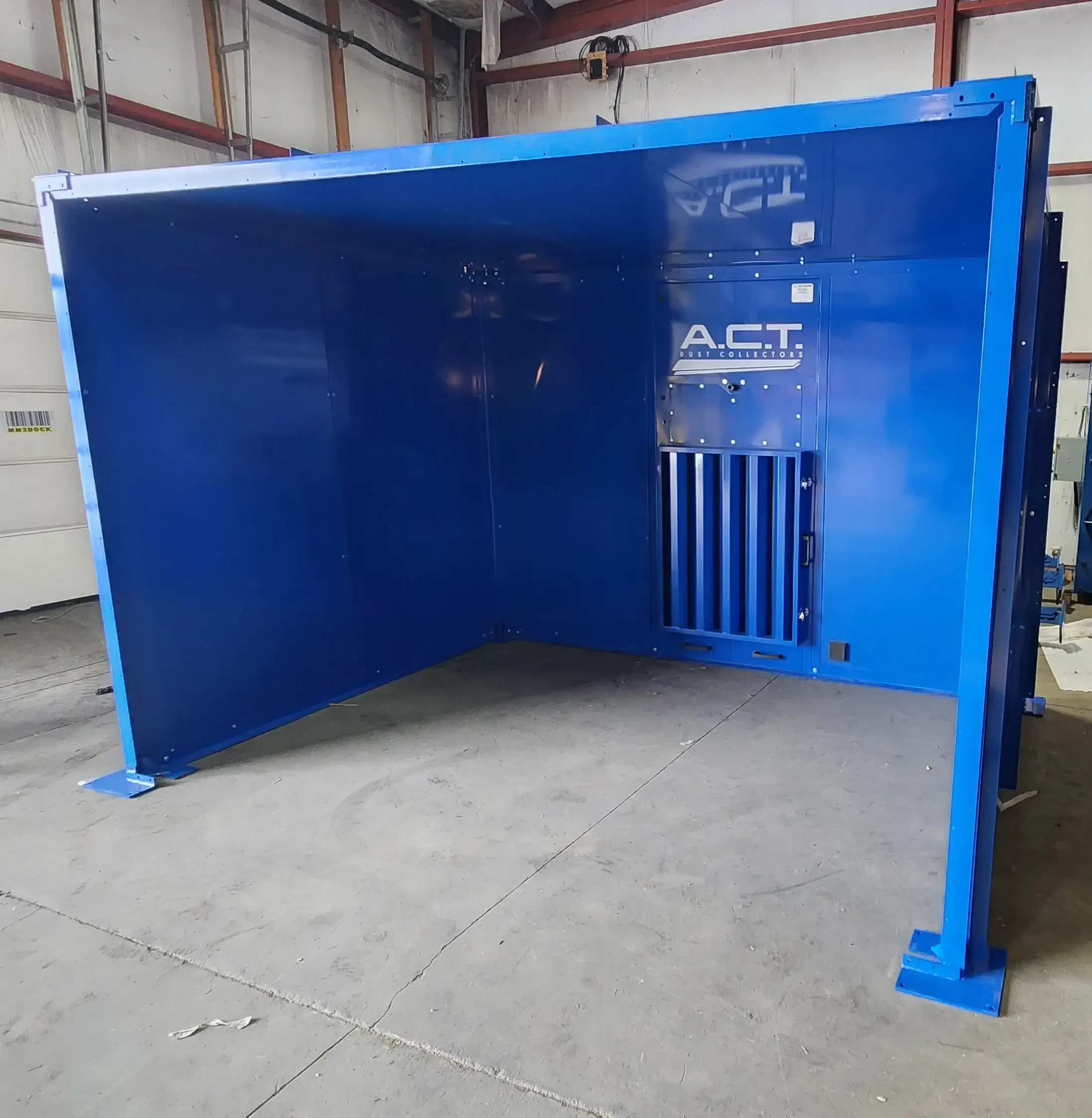

ACTion Booth Single

ACTion Booth Maintenance

When this dust collection system was designed, maintenance was top of mind. Our cartridge dust collectors are easy to maintain because of the following standard features:

  • Automatic Venturi-Assisted Pulse Filter Cleaning System
  • Ease of Access to Filters

High-efficiency vertical cartridge filters capture the dust, while an automatic pulse clean system maintains the system during operation. Accumulated dust is contained in the two dust drawers at the base, easily removable for disposal as needed.

ACT ADVANTAGE

Pulse-Clean-1@2x

PREMIUM GOYEN DIAPHRAGM VALVES AND ELECTRIC SOLENOIDS

Get behind the system, and the working end of the A.C.T. dust collector is equipped for any requirement. Goyen diaphragm valves and electric solenoids are the industry standard. Coupled with Dwyer Instruments digital, solid-state pulse control, complete with on-board pressure switch, you can control on-line, on-demand and downtime cleaning. All this is enclosed in a weatherproof housing for reliable operation.

ACT Filter B

HIGH-EFFICIENCY NANO-ELITE CARTRIDGE FILTERS

Your A.C.T. dust collector comes standard with industry-best A.C.T Nano-Elite media. These feature a MERV 15 efficiency rating for effective collection of extremely fine dust, smoke and fume, removing 99.9% of particulate from the air. The cleaned air is then directed to the location of your choice: either returned to your facility or exhausted to the environment.

Weld Smoke application - INSTALLED@2x

FIT AND FINISH

With hundreds of A.C.T. dust collectors manufactured and installed, every serial number is a statement of quality. Lifting lugs are engineered to the correct lifting angle and formed doors for maximum rigidity, coupled with deep one-piece gaskets, maintain the seal. Angle iron support structure and base plates are pre-punched for easy installation. A fastener kit is included with Grade 5, zinc-plated fasteners. A premium blast, prime and paint process ensures the system will remain in excellent cosmetic condition for many years.

RESOURCES

Resources

At A.C.T. Dust Collectors, we do more than sell dust collectors.  We want to be your number one resource for all your dust collection needs.  From our helpful glossary of terms to our on-demand webinars and videos – you can find it all right here.  Manuals and brochures for all of our models of dust collectors are also accessible in downloadable formats.



Related White Papers:

Related Case Studies:

Related Blog Posts:



STANDARD FEATURES

Standard Features

With millions of CFM going through operating ACT Dust Collectors every day worldwide, we have the solution to every application. Custom designed and built systems are common, and our engineering team can help find the dust collection system that's right for you.

Standard Features
Standard Features
Collector Design STD OPT
Mild Steel Construction
Venturi-Assisted Pulse Filter Cleaning System
A.C.T. Nano-Elite Nanofiber Cartridges
Dust Drawer/Tray Bottom Material Outlet
Control Box w/ Solid State Timer Board in NEMA 12 Enclosure and Pressure Gauge
Quick Lock, Easy-Access Filter Door
Unique ACTion Inlet With Spark Arresting Technology
Paint System STD OPT
Primed and Painted Interior
Multi-Coat Paint Finish
Custom Color
Warranty STD OPT
10-Year Warranty

DIMENSIONS

Dimensions

With millions of CFM going through operating ACT Dust Collectors every day worldwide, we have the solution to every application. Custom designed and built systems are common, and our engineering team can help find the dust collection system that's right for you.

Dimensions
Dimensions
Model Height (A) Width (B) Depth (C) # of Filters Filter Area
ACTion Booth 96 43 47 4 1400

REPLACEMENT FILTERS

OEM Replacement Filters

A.C.T. Nano-Elite high efficiency cartridge filters remove 99.9% of the particulate from the air stream. They carry a MERV 15 rating (best in the industry). The cleaned air is then directed to the location of your choice, either returned to the facility or exhausted to the environment.

DCF24201-C OEM Filter Button 2024 new
