Metal Fabrication Dust Collection System for High-Volume Airflow

One of the largest metal fabrication shops in North America required a high-capacity dust collection system to support a major facility upgrade. The operation involved metalizing large steel structures for bridge building and transportation projects, requiring efficient filtration of large volumes of air.

A.C.T. Dust Collectors designed a solution to capture airborne particulate and maintain consistent airflow in a large-scale metalworking environment.

Project Snapshot

• Industry: Metal fabrication / metalworking
• Application: Metalizing booth dust collection
• Location: Pennsylvania
• Challenge: Filtering large volumes of air efficiently
• Dust Type: Inert particulate
• System Installed: ACT 5-140 cartridge dust collector
• Outcome: Improved airflow and effective dust capture

The Challenge: High-Volume Airflow in Metalizing Operations

Metal fabrication processes, particularly metalizing, can require large volumes of air to be filtered continuously.

In this facility:

• Massive steel structures were processed for infrastructure projects
• A custom metalizing booth required high airflow capacity
• Air needed to be filtered efficiently to maintain performance
• The system had to support consistent operation at scale

The customer needed a dust collection solution capable of handling high airflow demands without sacrificing performance.

The Solution: ACT 5-140 Cartridge Dust Collector

After reviewing the application, A.C.T. Dust Collectors recommended:

• ACT 5-140 cartridge dust collection system
• Sized specifically for high-volume airflow requirements
• Designed to capture inert particulate from metalworking processes

The system was selected for its:

• Ability to handle large air volumes
• Durable construction for industrial environments
• Reliable performance in continuous operations

Installation & Performance

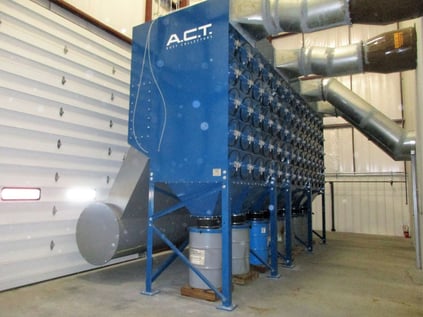

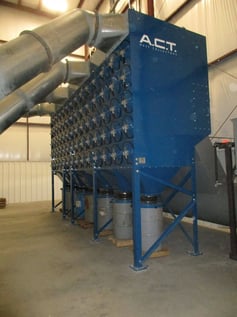

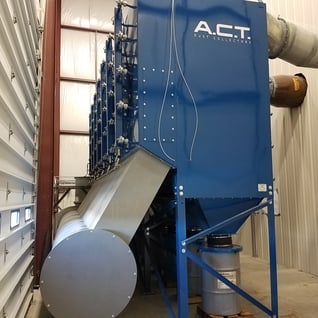

The dust collection system was installed and placed into operation as part of the facility upgrade.

Outcomes:

• Effective filtration of large volumes of air
• Strong airflow performance within the metalizing booth
• Reliable operation following installation
• Improved overall air quality in the workspace

The customer reported a positive experience with both the system and the installation process: “Working with A.C.T. Dust Collectors made this project easy. Simple, straightforward and well-priced. The installed system did not disappoint, and we get excellent draw from the booth.” - Rick

High-Capacity Dust Collection in Metal Fabrication

Metal fabrication environments often require dust collection systems that can:

• Handle large airflow volumes
• Maintain consistent performance in demanding applications
• Capture particulate generated during metalworking processes
• Support continuous production without interruption

Proper system sizing is critical to ensure efficient airflow and effective dust capture.

Work with A.C.T. Dust Collectors

If your operation requires high-capacity dust collection for metal fabrication or metalworking applications, A.C.T. Dust Collectors can design a system tailored to your facility. Contact our team to discuss a solution for your application.

Frequently Asked Questions

What is a metalworking dust collection system?

A metalworking dust collection system is designed to capture and filter airborne particulate generated during processes such as cutting, grinding, and metalizing. These systems use airflow and filtration to remove dust from the air, helping maintain indoor air quality, improve visibility, and support safe working conditions in fabrication environments.

Why is airflow capacity important in dust collection systems?

Airflow capacity determines how much air a dust collection system can move and filter within a space, typically measured in cubic feet per minute (CFM). High-capacity systems are necessary for large facilities or applications where significant volumes of air must be continuously cleaned. Proper airflow ensures that airborne dust is effectively captured at the source and that consistent air quality is maintained throughout the workspace.

What does inert dust mean in metal fabrication?

Inert dust refers to particulate that is not chemically reactive or combustible under normal operating conditions. In metal fabrication, this can include dust generated from processes like grinding or metalizing certain materials. While inert dust may not present an explosion risk, it still needs to be captured and filtered to maintain air quality, protect equipment, and reduce buildup within the facility.

How are dust collection systems sized for industrial applications?

Dust collection systems are sized based on several factors, including airflow requirements (CFM), the size of the workspace, the type of application, and the characteristics of the dust being generated. Engineers also consider how many workstations are operating and how air will be captured and moved through the system. Proper sizing ensures consistent airflow, effective dust capture, and reliable performance over time.
