    ACT Standing Fume Arm
    ACT Standing Fume Arm

    A.C.T. Dust Collectors Accessory

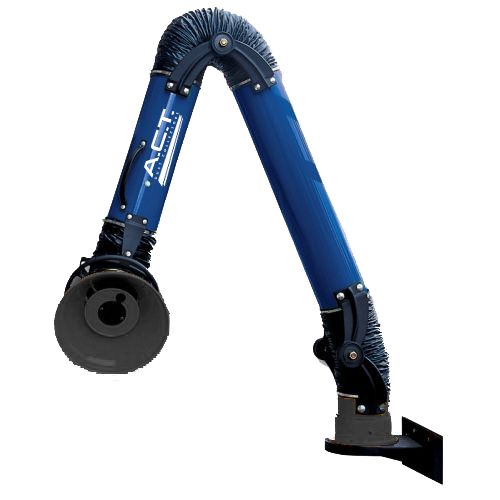

    With high air flow and low pressure drop the A.C.T. Dust Collectors standing fume arm is perfect in medium to heavy duty welding fume and welding dust applications. The ACT ARM by ACT Dust Collectors enable you to capture and extract contaminant fumes at source.  The extraction arms are available in two lengths to best suit your workstation needs. Our fume extraction arm tubes are fabricated of galvanized steel with external joints which are fully adjustable to the workers desired tension.

    The ACT ARM has extraordinary suction power achieving 800-1000 CFM per fume arm.  The arms include a grab handle which completely encircles the hood in order to facilitate easy repositioning from all sides and a gas shock at the base. Inside the hood, is an air diverter that broadens the intake of dirty air at the capture spot. The standing fume arm can be ducted into an A.C.T. Dust Collector and attached to your welding tables and portable units.

    Our standard standing fume arm sizes are:

    • 6 in diameter x 7 ft length with a 12 inch diameter hood

    • 6 in diameter x 10 ft length with a 12 inch diameter hood

    • 8 in diameter x 7 ft length with a 14 inch diameter hood

    *Custom sizing of the standing fume arms can be quoted.
